Cable jacket black masterbatch: what the data sheet leaves out
A jacket can hit its carbon black target and still fail its type test. Dispersion decides both UV life and volume resistivity - and it is the one number most masterbatch data sheets leave out.
By Zoe Lin, Export Manager, E-LUCK (Guangdong Yijuyuan Plastic Industry Technology Co., Ltd.)
Almost every cable jacket compound on the market is specified with a carbon black content — typically 2.5% ± 0.25% in the finished compound. That number is necessary. It is also not sufficient. Two jackets can both measure 2.5% carbon black by pyrolysis and behave completely differently after eighteen months on a pole: one holds its elongation, the other cracks at the first cold snap.
The difference is dispersion. And dispersion is the specification that most masterbatch data sheets do not state at all.
Why carbon black protects, and where the protection fails
Polyethylene without carbon black is a poor outdoor material. Ultraviolet radiation in the 290–400 nm band breaks the polymer backbone, and the failure is not cosmetic — it is chain scission, followed by embrittlement, followed by cracking. Carbon black is the most cost-effective UV screen available for polyolefin cable jacket compounds, and it works through two mechanisms at once: absorption and scattering of UV energy, and radical scavenging at the particle surface.
Both mechanisms depend on particle size, and that is the crux. Carbon black is delivered as primary particles of roughly 10–30 nm that have already fused into aggregates of 50–300 nm. What matters for protection is that these aggregates are spread evenly through the polymer at a spacing smaller than the wavelength of the radiation you are screening. When they are, UV energy meets a carbon black particle before it meets an unguarded polymer chain.
When they are not — when aggregates clump into agglomerates of 5 µm and larger — you get protection islands separated by unprotected corridors. The jacket still measures 2.5% carbon black, because pyrolysis burns everything and counts everything. The bulk number cannot see the gaps.
The second problem: dispersion and volume resistivity
Cable jackets are insulation. That means black masterbatch in a cable compound has a second job that film and moulding grades do not have: it must not degrade electrical performance.
Carbon black is conductive. Well-dispersed carbon black at 2.5% loading sits below the percolation threshold and the compound keeps its volume resistivity, typically specified in the range of 10<sup>14</sup> Ω·m or higher for medium-voltage jacket compounds. Poorly dispersed carbon black does the opposite. Agglomerates act as conductive nodes, and where they touch each other they form continuous paths across the insulation. Volume resistivity drops — sometimes by several orders of magnitude — and the jacket fails its electrical test even though nothing looks wrong on the surface.
This is the failure mode that catches buyers out most often, because it is invisible. Extrusion runs clean, the surface is smooth, the carbon black number is on target, and the cable fails at the type test.
| What you measure | What it tells you | What it cannot tell you |
|---|---|---|
| Carbon black content (ASTM D1603, ISO 6964) | Total loading in the compound | Whether it is dispersed or sitting in clumps |
| Volume resistivity (ASTM D257) | Whether conductive paths have formed | Whether those paths will form later in service |
| Accelerated UV ageing (ASTM G155) | Survival of the compound after weathering | Nothing — this is the outcome test |
| Pressure filter value (EN 13900-5) | Dispersion quality of the masterbatch as delivered | How your specific line will handle it |
What to ask for instead of a carbon black number
If you buy jacket compound or jacket masterbatch, the useful questions are about dispersion control, not the loading figure. In practice, four things separate a jacket-grade masterbatch from a general-purpose black:
1. Dispersion grade, stated as a number. Pressure filter value is the most transferable metric. It is measured on the masterbatch itself, before your line enters the picture, which makes it comparable across suppliers. Ask for the value and the test standard, not a word like "excellent".
2. Carbon black type. Furnace blacks (N550, N660 and similar) are the workhorses for cable jacket. They differ in structure and surface area, which changes both UV screening efficiency and conductivity. A supplier who cannot tell you which grade they use is buying on price, and you will feel it in the type test.
3. Carrier match to the jacket compound. For a standard PE or LLDPE jacket, an LLDPE-carrier masterbatch is the straightforward choice. Two cases need more attention: halogen-free flame-retardant (LSZH) compounds, where the high filler load can make an incompatible carrier segregate; and crosslinkable compounds, where the carrier must not interfere with the crosslinking chemistry or the gel content will land out of specification.
4. Moisture and handling before it reaches you. Jacket compounds are sensitive to moisture in a way that film grades are not, because voids from volatilised water become electrical defects. Ask how the masterbatch is dried, packed and sealed — heat-sealed foil-lined bags rather than stitched paper — and expect a moisture figure on the CoA.
Matching the grade to the cable, not to the price list
The three jacket applications we see most often have different priorities, and buying one generic "cable black" for all three is how quality problems begin.
Aerial and outdoor LV cable (overhead insulated conductors, ABC) is the most UV-critical case. Long service life, direct sun, high surface temperature in summer. Here the dispersion specification is the whole ballgame, because a single unprotected corridor becomes a crack initiation site. Carbon black content is typically held at or slightly above 2.5%.
Underground power cable jackets tolerate less UV exposure but are unforgiving on electrical performance and mechanical ageing in wet soil. Volume resistivity and gel content dominate. Carbon black content is usually specified 2.0–2.5%, and the type test is where a cheap masterbatch reveals itself.
Control, instrumentation and data cables are the cases where buyers most often under-specify, because the jacket is thin and the cable is cheap per metre. But thin walls exaggerate any dispersion defect: there is simply less material between the conductor and the outside world, so a 5 µm agglomerate occupies a much larger fraction of the wall.
A short purchasing protocol
Before you place a jacket-masterbatch order, ask the supplier for:
- Pressure filter value with the test standard and the value, on the grade you are being offered
- The carbon black grade designation and the target content in the finished compound
- A volume resistivity figure measured on compound made with that masterbatch, not a generic catalogue number
- Gel content after crosslinking, for crosslinkable applications
- A retained sample statement — what they keep from each lot, and for how long
A supplier who can answer all five in writing is a supplier whose lots you can test against a baseline. A supplier who answers only the first with an adjective is a supplier whose failures you will be diagnosing on your own line.
The short version
Carbon black content tells you how much black is in the bag. Dispersion tells you whether that black will still be protecting the cable in year fifteen. For cable jacket applications, buy the dispersion specification and verify the loading — not the other way round.
If you are running a jacket trial and want a grade matched to your compound and line, send us the polymer, the target carbon black content and your wall thickness. We will come back with a grade and a let-down recommendation, and a free 1–5 kg sample on your own carrier resin so you can run it before committing.
About the Author

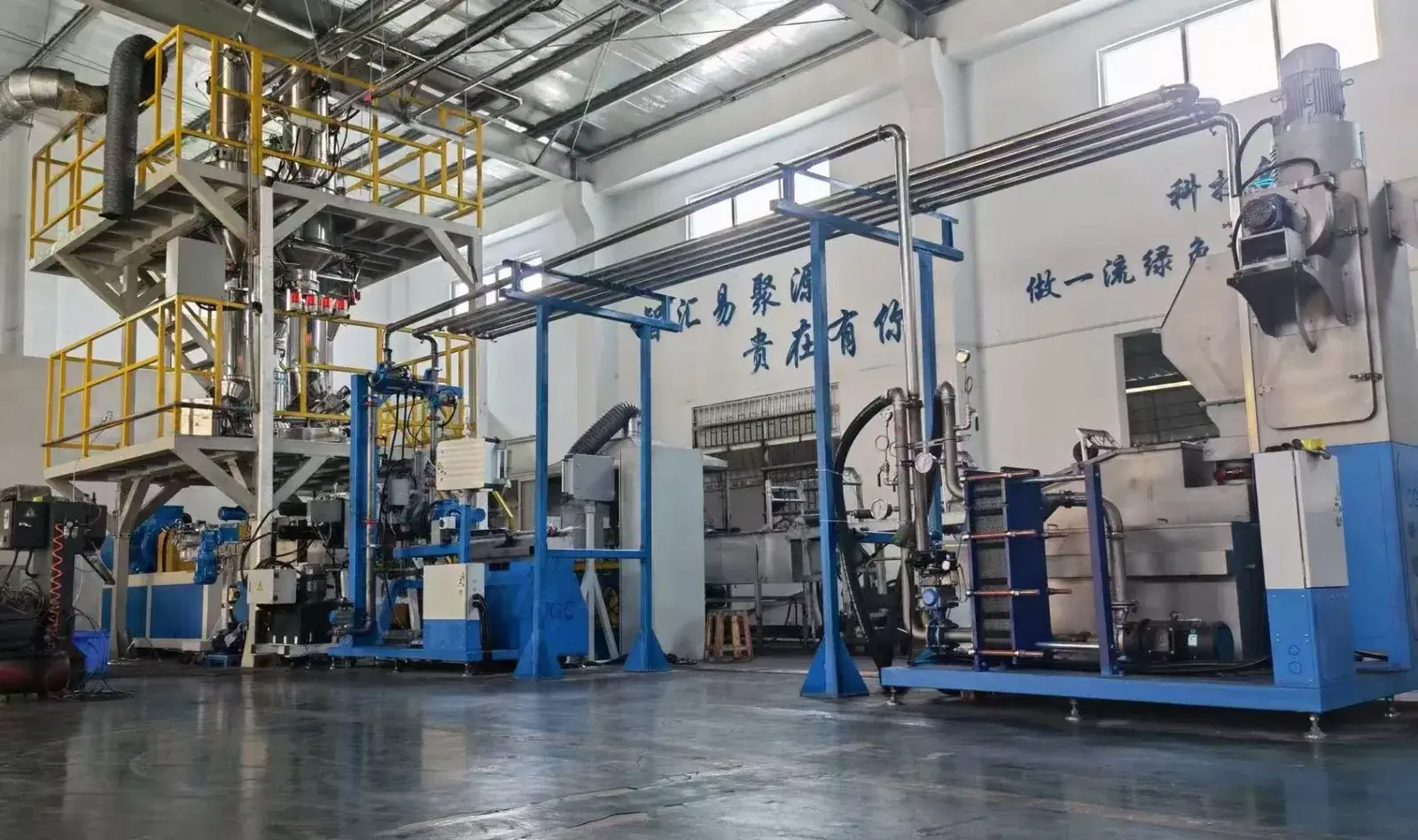

Zoe Lin is the export sales manager at E-LUCK (Guangdong Yijuyuan Plastic Industry Technology Co., Ltd.), a black masterbatch manufacturer in Huizhou, Guangdong, China, supplying PE, PP, ABS, PC, PA, PET and cable-grade black masterbatch to converters in more than 30 countries. Contact: [email protected] · WhatsApp +86 133 8067 5268 · https://masterbatchsource.com
Common questions
Is 2.5% carbon black enough for a cable jacket?
It is the common specification for UV-critical jackets, but the loading figure alone is not sufficient. Poorly dispersed carbon black leaves unprotected corridors even when the bulk content reads correctly.
Why does dispersion affect volume resistivity?
Carbon black agglomerates act as conductive nodes. Where they touch, they form paths across the insulation and volume resistivity falls — sometimes by orders of magnitude — even though the surface looks fine.
What is the best dispersion metric to ask for?
Pressure filter value, quoted with the test standard, measured on the masterbatch itself. It is comparable across suppliers before your line enters the picture.
Can I use the same grade for aerial and underground cable?
They have different priorities. Aerial and outdoor LV cable is UV-critical; underground power cable is unforgiving on volume resistivity and gel content. Specify them separately.
