What is black masterbatch? Definition and composition
Black masterbatch is carbon black, a carrier resin and usually a small amount of additive, compounded into pellets. Here is what each part does, the numbers that actually need specifying, and five assumptions that cost buyers money.
By Zoe Lin, Export Manager, E-LUCK (Guangdong Yijuyuan Plastic Industry Technology Co., Ltd.)

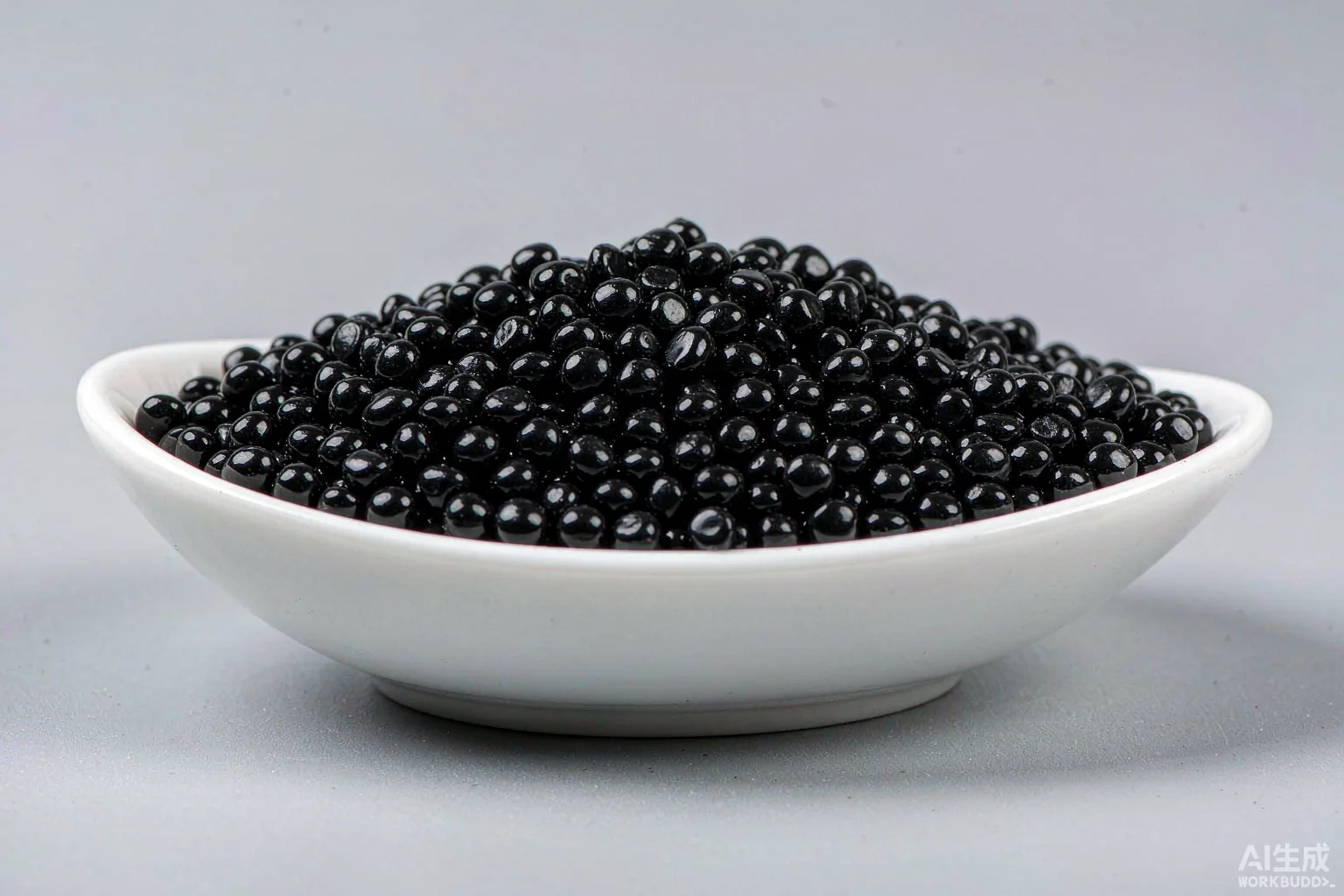

Black masterbatch is a pelletised concentrate of carbon black dispersed in a carrier polymer, dosed into natural resin at the extruder or moulding machine to deliver a target carbon black content in the finished product.
That sentence contains the whole idea, but almost every costly argument in this category comes from one of its parts being treated as unimportant — the carbon black content, the carrier, or the dispersion between them. This page walks through the three components, the numbers that actually need to be specified, and the five assumptions that most often cost buyers money.
The three components
1. Carbon black. The pigment and the ultraviolet screen. Typical loading in the masterbatch ranges from about 15% to 60% by weight. The grade of carbon black matters as much as the amount: furnace blacks (N550, N660 and similar) dominate general-purpose applications, while conductive grades use high-structure or acetylene blacks for very different reasons — electrical performance rather than colour.
2. Carrier resin. The polymer the carbon black is dispersed into. It has to be compatible with your base resin, because an incompatible carrier segregates during processing and shows up as surface defects or inconsistent colour. Common carriers are PE, LLDPE, PP, PS, ABS, PA, PET and PBT, with grades also available on no-carrier (powder) bases.
3. Additives. Not always present, but relevant when they are: dispersing agents that help break down agglomerates, UV stabilisers that supplement the carbon black's screening, antioxidants, and processing aids such as slip or anti-block where the application needs them.
Why dose a concentrate instead of adding carbon black directly?
Carbon black powder is cheap per kilogram and awkward to use. Plants still buy it in concentrate form for four reasons:
Dispersion. Carbon black arrives as aggregates that must be broken down to roughly primary-particle scale to work properly. A compounding line with twin-screw mixing does that job under controlled conditions. Trying to achieve the same dispersion at the press, from powder, is a much harder problem — and failures show up as specks, gels and weak spots rather than as an obvious defect.
Cleanliness and safety. Carbon black is a fine, dusty, staining material. Handling it in bulk at the machine creates housekeeping, respiratory and cross-contamination problems that a pellet avoids entirely.
Dosing accuracy. Pellets feed predictably through a gravimetric feeder. Powder does not, at the low addition rates these applications use.
One grade, many jobs. A plant running several black products can hold one masterbatch grade and vary the let-down, instead of holding several pre-compounded resins.
The figures you need to specify
| What | What it means | Typical range |
|---|---|---|
| Carbon black content | Share of the masterbatch that is carbon black | 15–60% |
| Target content in the compound | What the finished part or film must contain | 2.0–2.5% for UV-critical parts; varies by colour target elsewhere |
| Let-down ratio | Masterbatch as a percentage of total compound | 4–10% depending on the above two figures |
| Carrier resin | Polymer the masterbatch is based on | Must match or be compatible with your base resin |
| Melt flow rate | Flow behaviour, must suit your line | Matched to the base polymer's processing window |
| Dispersion | How well the carbon black is broken down | Pressure filter value, quoted with the masterbatch |
| Moisture | Water content, matters for PA/PET and thin film | Specified per grade; low single-digit ppm to a fraction of a percent |
If you only get one of these wrong, it is usually the relationship between the first two: a 40% masterbatch running at 5% let-down gives you 2.0% in the compound, and the same masterbatch at 6.25% gives you 2.5%. Those are very different products. Working the arithmetic backwards from the specification — rather than forwards from the price list — is the single most useful habit in this category. Our let-down calculator does it in the browser.
Black masterbatch is not one product
The name covers a family, and buying across the family on one price list is how mismatches happen.
- Standard black masterbatch — colour and opacity for film, mouldings, pipe and sheet. The bulk of the market.
- Carbon black masterbatch — usually a synonym, though buyers sometimes use it to mean a higher-loaded grade.
- UV-stabilised black — for outdoor service, where carbon black content is held at or above the level that provides effective UV screening, and the stabiliser package is specified to a target service life.
- Conductive and antistatic grades — where carbon black is chosen and dosed to hit a surface resistivity target rather than a colour target. These behave like a different material family: see antistatic vs conductive black masterbatch.
- Food-contact grades — where the carrier and the carbon black must both be acceptable for the intended contact condition, with the documentation to support it.
Five assumptions that cost money
1. "A higher carbon black percentage is a better grade." Not by itself. A 50% grade that disperses poorly underperforms a 40% grade that disperses well — the plant compensates by raising the let-down, and the cost advantage disappears on the line rather than on the invoice.
2. "It is only carbon black and plastic, so the cheapest bag is equivalent." The cheap and expensive bags can contain the same two ingredients and behave completely differently, because the compounding step is where the value is created.
3. "Let-down is a machine setting, not a specification." Let-down determines what the finished product contains. Treating it as an operator preference is the most common cause of disputes that turn out to be nothing to do with the masterbatch.
4. "Any carrier will do as long as it is polyethylene." Carrier compatibility matters most in filled systems, in halogen-free flame-retardant compounds and in crosslinkable compounds, where an incompatible carrier can interfere with the chemistry rather than simply dispersing badly.
5. "A technical data sheet tells me what is in this shipment." A TDS describes the grade's nominal design. Only a lot-level certificate of analysis describes what was actually measured — see what should arrive with the container.
Four questions that let you specify black masterbatch properly
- What is the carrier polymer of the product I am making? This sets the carrier of the masterbatch, and it is not negotiable for filled, flame-retardant or crosslinkable systems.
- What must the finished product contain, and why? Carbon black at 2.0–2.5% for UV service life; a different figure where the requirement is opacity or colour depth. The "why" determines which figure is correct.
- What is my let-down, and is it being measured or assumed? A measured figure is worth more than a nominal one, and it costs one hour to obtain.
- What dispersion level do I need, and how will I verify it? The answer is usually a filter value quoted by the supplier, and screen life or rejection rate measured on your own line.
The short version
Black masterbatch is carbon black, a carrier resin and usually a small amount of additive, compounded into pellets so that a plant can add colour and UV protection at a controlled and measurable rate. It is a formulated product, not a commodity bag of pigment — and the specification that matters most is not the one on the bag but the one the finished product has to meet.
If you want a grade matched to your polymer and application, send us the base resin, the target carbon black content in the finished product and your monthly volume. We will come back with a grade and a let-down recommendation, and a free 1–5 kg sample compounded on your own carrier resin so you can run it before committing.
About the Author
Zoe Lin is the export sales manager at E-LUCK (Guangdong Yijuyuan Plastic Industry Technology Co., Ltd.), a black masterbatch manufacturer in Huizhou, Guangdong, China, supplying PE, PP, ABS, PC, PA, PET, cable-grade and film-grade black masterbatch to converters in more than 30 countries. Contact: [email protected] · WhatsApp +86 133 8067 5268 · https://masterbatchsource.com
Common questions
What is black masterbatch made of?
Carbon black, a carrier resin such as PE, PP, PS, ABS, PA or PET, and usually a small amount of additive — dispersing agents, UV stabilisers or antioxidants. Typical carbon black content runs from about 15% to 60%.
Is black masterbatch the same as carbon black?
No. Carbon black is the raw pigment; black masterbatch is a compounded concentrate of that pigment dispersed in a polymer carrier, so it can be dosed accurately at the extruder or moulding machine.
How much black masterbatch do I add?
The let-down depends on two figures: the carbon black content of the masterbatch and the target content in the finished product. A 40% masterbatch targeting 2.5% in the compound runs at 6.25% let-down.
Can I use the same grade for film and mouldings?
Not usually. Film grades need higher dispersion and tighter filtration; moulding grades are specified for flow and surface finish. Carrier compatibility matters in both cases.
